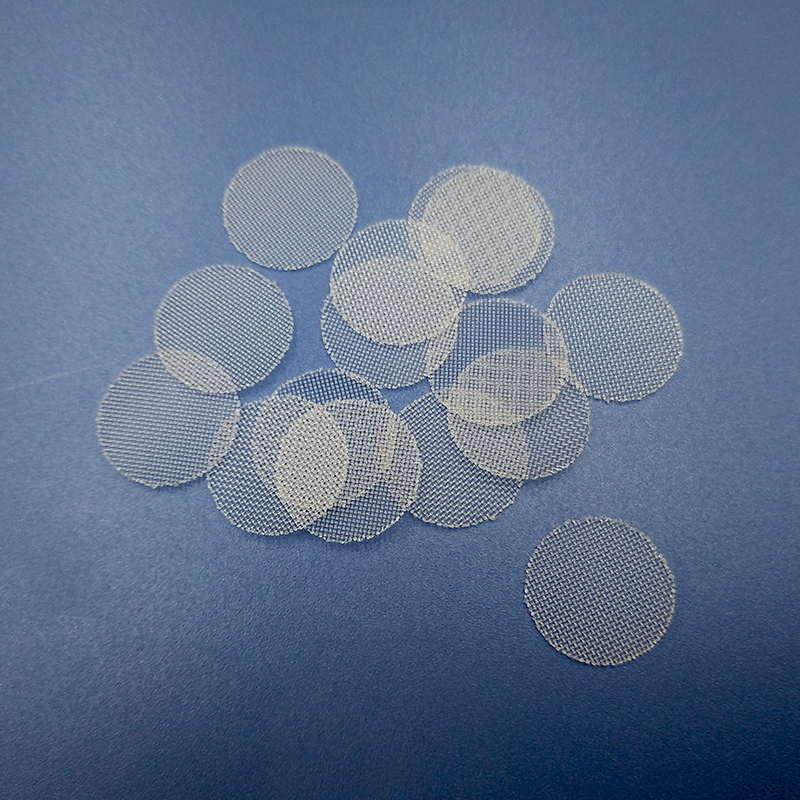

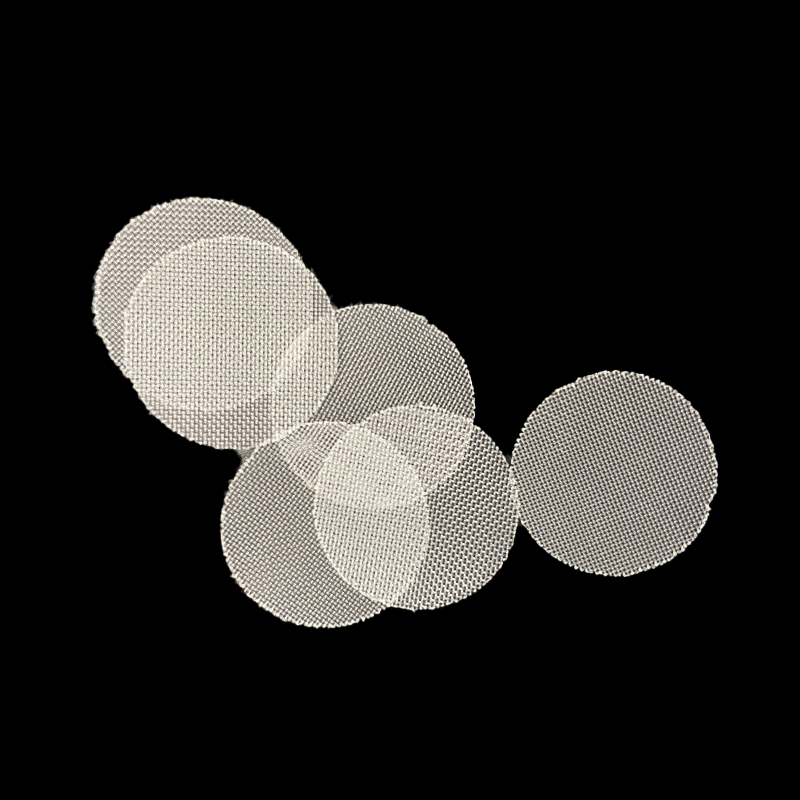

Custom Nylon Filter Discs & Shapes | Laser-Cut & FDA Compliant
Sourcing custom nylon filter discs? We offer precision CNC laser-cutting (heat-sealed edges), ultrasonic welding, and FDA-compliant PA6/PA66 mesh. Request a quote.
In modern industrial filtration, custom nylon filter discs have become indispensable components for critical applications spanning from medical blood transfusion devices to automotive fluid systems and food processing. However, sourcing the right nylon filter mesh disc is not just about choosing a diameter; it requires a deep understanding of micron ratings, edge-processing technologies, and stringent regulatory compliance.
As a leading global manufacturer specializing in custom nylon fabrication, we provide this comprehensive guide to help procurement managers and product engineers make informed decisions.
1. Why Choose Nylon (PA6/PA66) for Precision Filtration Discs?
Nylon, specifically Polyamide 6 (PA6) and Polyamide 66 (PA66), is a synthetic polymer highly favored in precision filtration due to its unique physical and chemical properties:
- High Tensile Strength & Abrasion Resistance: Nylon mesh can withstand high mechanical stress and backwashing cycles without tearing.
- Precise and Uniform Openings: Monofilament nylon weave ensures exact micron ratings (from 5μm to 1500μm) with predictable flow rates and low pressure drops.
- Chemical Compatibility: Excellent resistance to alkalis, hydrocarbons, and many organic solvents.
- Hydrophilic Nature: It wets easily with aqueous liquids, making it ideal for medical, laboratory, and water-treatment applications.
2. Advanced Processing Technologies for Custom Nylon Discs
The biggest technical challenge with nylon mesh is its tendency to fray or unweave when cut. Traditional mechanical blade cutting often leaves loose threads and burs, which can contaminate the filtrated fluid or jam downstream equipment.
To solve this, we utilize three cutting-edge fabrication methods depending on your volume and application requirements:
A. Laser Cutting (The Gold Standard for Intricate Shapes)
- How it works: A high-precision CNC laser vaporizes the mesh according to your CAD drawings.
- The Benefit: The intense heat instantly seals the mesh fibers together, creating heat-sealed edges with zero fraying and no loose threads.
- Precision: Achieves tight tolerances up to ±0.1 mm, making it perfect for complex geometric shapes, rings, and ovals.
B. Ultrasonic Fabric Welding & Cutting
- How it works: High-frequency acoustic vibrations generate localized frictional heat to melt and bond the mesh.
- The Benefit: It provides an incredibly clean, thread-free, and 100% adhesive-free bond. This is the mandatory choice for medical-grade and pharmaceutical filtration where chemical glues are strictly prohibited.
C. Precision Stamping (Die-Cutting)
- How it works: Custom-made metal dies punch out the shapes in high-speed presses.
- The Benefit: Extremely cost-effective for high-volume production of standard circular discs. We utilize proprietary anti-fraying die designs to minimize edge roughness.
3. Critical Technical Parameters for Customization
When requesting a quote for custom nylon filter discs, providing these exact engineering parameters ensures seamless production:
| Parameter | Options / Ranges | Why It Matters |
|---|---|---|
| Micron Rating | 5 μm to 1500 μm | Determines the particle size the disc will capture. |
| Mesh Count | 10 mesh to over 500 mesh/inch | Affects the open area percentage and flow rate. |
| Disc Diameter | Custom (e.g., 10mm to 500mm+) | Must fit perfectly into your filter housing or cap. |
| Edge Finish | Heat-Sealed (Laser) / Ultrasonic / Stamped | Prevents fiber migration and fluid bypass. |
| Weave Type | Plain Weave / Twill Weave / Dutch Weave | Influences mechanical stability and filtration depth. |
4. Compliance and Certifications: FDA and Beyond
For industries like food and beverage (coffee filters, flour milling, juice clarification) or medical diagnostics, material safety is non-negotiable.
Our factory adheres to strict quality management and hygiene standards:
- FDA Compliance: Our raw PA6 and PA66 monofilament nylon meshes are fully compliant with FDA regulations for food contact.
- SGS / Intertek Certified: Every batch undergoes rigorous third-party testing to comply with EU Food Contact Regulations, RoHS, and REACH.
- Traceability: We provide material test reports (MTR) and certificates of compliance (CoC) with every shipment, ensuring complete supply chain transparency.
5. Our Step-by-Step Customization Process
Partnering with us for your custom filtration needs is a streamlined, engineer-to-engineer process:
- Drawing Submission: Send us your technical specifications, blueprints, or CAD files (DXF, DWG, or PDF).
- Material Selection: Our engineers help you choose the optimal micron rating, yarn diameter, and weave type based on your operating temperature and chemical exposure.
- Prototyping & Sampling: We produce rapid laser-cut prototypes for your laboratory or field testing.
- Mass Production: Upon sample approval, we launch automated CNC laser cutting or stamping for consistent quality.
- Quality Control & Ultrasonic Cleaning: Discs are inspected under high-magnification microscopes for aperture uniformity and dimension accuracy, followed by ultrasonic cleaning to remove any microscopic particles.
- Sealed Packaging: Cleanroom-level packaging to prevent dust contamination during global transit.
Need a Custom Nylon Filter Disc Solution?
Whether you need 1,000 laser-cut rings for an automotive prototype or 1,000,000 stamped discs for a commercial appliance line, we deliver the precision and compliance your brand demands.
[Contact Our Engineering Team Today] to request a rapid quote or download our [SGS FDA Compliance Test Report (PDF)].
Frequently Asked Questions (FAQ) About Custom Nylon Filter Discs
Q1: How do you prevent custom nylon filter discs from fraying or dropping loose threads?
For applications requiring zero fiber migration, we strictly recommend **CNC Laser Cutting**. The laser beam melts the PA6/PA66 fibers precisely along the cutting edge, creating a **permanent, smooth, heat-sealed boundary**. If your application involves medical-grade requirements where heat sealing is restricted, we utilize **Ultrasonic Cutting** to achieve a clean, mechanical bond without any loose threads.
Q2: Are your nylon filtration discs safe for medical and food-contact use?
Yes. Our custom nylon filter discs are fabricated from 100% virgin monofilament nylon mesh that is certified **FDA compliant** and fully meets **EU food contact regulations (EC 1935/2004)**. We manufacture these discs in a dust-controlled environment, followed by ultrasonic cleaning to ensure they are 100% contamination-free for food, beverage, and medical diagnostics.
Q3: What file formats do you accept for custom geometric shapes and rings?
We can process almost any custom shape based on your engineering files. We prefer vector and CAD formats including **.DXF, .DWG, .STP, and .IQS**. However, if you only have a high-resolution **.PDF or architectural sketch** with clear millimeter (mm) dimensions, our in-house engineering team can convert it into a manufacturing-ready CAD file for your approval.
Q4: What is the lead time for customized prototype samples?
Thanks to our agile CNC laser prototyping setup, we can finish and dispatch custom laser-cut nylon disc samples within **2 to 4 working days** after receiving your drawings. This fast-track sampling allows your R&D department to perform rapid lab testing before committing to large-scale production.
