CB CQ Silk Screen Series Mesh

Introduction:

CB, CQ silk screen series products are pure natural silk screening materials specially used in food screening filtration and flour milling industry.

TAXTILE SCREEN PRINTING MESH

Type	Specification (cm)	Mesh count (mesh/inch)	Thread Diameter （μm）	Mesh opening（μm）	Open Area（%）	Request a Quote
CQ4	4	10	20 / 22	2107	71	Quote
CQ5	5	13	20 / 22	1632	67	Quote
CQ6	6	15	20 / 22	1326	63	Quote
CQ7	7	18	20 / 22	1118	61	Quote
CQ8	8	20	20 / 22	956	58	Quote
CQ9	9	23	20 / 22	833	56	Quote
CQ10	10	25	20 / 22	737	54	Quote
CQ11	11	28	20 / 22	629	53	Quote
CQ12	12	30	20 / 22	577	51	Quote
CQ13	13	33	20 / 22	533	49	Quote
CQ14	14	36	20 / 22	495	48	Quote
CQ15	15	38	20 / 22	457	47	Quote
CQ16	16	41	20 / 22	428	46	Quote
CQ17	17	43	20 / 22	400	46	Quote
CQ18	18	46	20 / 22	377	46	Quote
CQ19	19	48	20 / 22	351	44	Quote
CQ20	20	51	20 / 22	330	44	Quote
CQ21	21	53	20 / 22	312	43	Quote
CQ22	22	56	20 / 22	296	43	Quote
CQ23	23	58	20 / 22	279	41	Quote
CQ24	24	61	20 / 22	265	40	Quote
CQ25	25	64	20 / 22	253	40	Quote
CQ26	26	66	20 / 22	246	41	Quote
CQ27	27	69	20 / 22	237	41	Quote
CQ28	28	71	20 / 22	226	40	Quote
CQ29	29	74	20 / 22	222	41	Quote
CP30	30	76	20 / 22	218	44	Quote
CP33	33	84	20 / 22	199	43	Quote
CP36	36	91	20 / 22	178	41	Quote
CP39	39	99	20 / 22	162	40	Quote
CP42	42	107	20 / 22	148	39	Quote
CP46	46	117	20 / 22	136	39	Quote
CP50	50	127	20 / 22	127	40	Quote
CP54	54	137	20 / 22	119	41	Quote
CP58	58	147	20 / 22	106	38	Quote
CP62	62	157	20 / 22	104	42	Quote

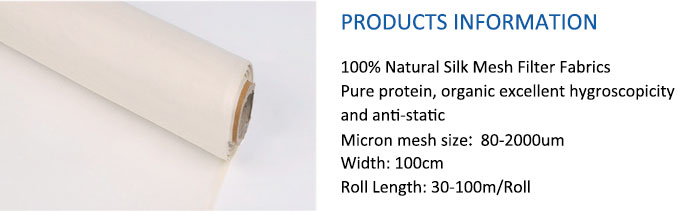

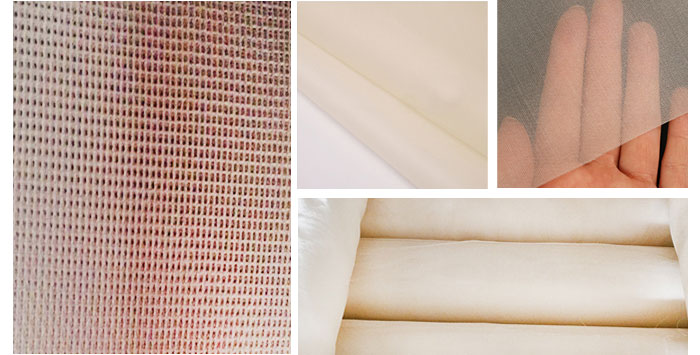

100% Natural Silk Mesh Filter Fabrics

The natural silk mesh filter fabrics are woven by 100% multistrand natural silk yarns and used for

filtration. The natural silk fibers, which are made of pure protein, are renowned for their incredible

lightness, strength, and durability.

Bonfilt’s Natural Silk Mesh Bolting Cloth Types

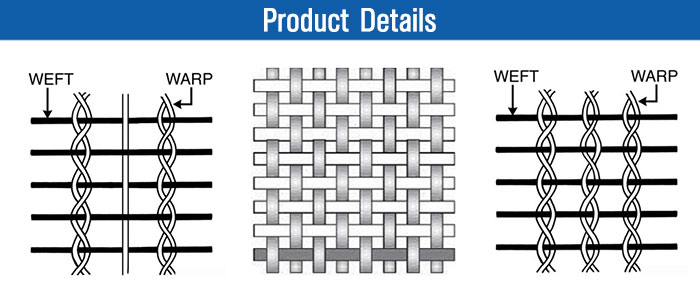

According to the mesh opening size, there are three weave patterns include twist or called leno weave

(CQ series), half twist (CB series), and plain weave (CP series).

For the lower mesh count (below 30mesh/cm) in large aperture size, leno (twist) weave is necessary to get better strength and stable construction to anti-deform.

The half twist and plain weave are commonly used for higher mesh count (above 30mesh/cm).

Product Features

The natural silk mesh sieving cloth has the remarkable properties of good elasticity, do not deform or

slack easily, excellent hygroscopicity and anti-static property. Meanwhile, the filter mesh fabrics made

out by natural silk are not wearable, easy to fluff which is the weakness.

The natural silk mesh bolting cloth is a kind of micron filter mesh, which is absolute filtration and surface filtration.

The 100% natural silk sieve cloth has been widely used in flour mill industry several decades ago, which after being replaced by the synthetic sifting fabrics. Although the natural silk mesh filter fabrics are still used in some applications for its natural, organic, and anti-static properties. Such as,

1. Gunpowder sifting.
2. Emery classification for rotary sander.
3. Organic matter filtration like essential oil.
4. Food & beverage filtering & sifting.
5. For handicraft article.

Direct factory customization, reduce the link, you can enjoy the factory price; factory large-scale

procurement of raw materials, can control the cost very well.

[Packing]

1. Paper tube inside, plastic bag outside, then packed in cartons.
2. Folding the mesh into plastic bag, then packed in cartons.

[Shipping]

1. Samples orders usually within 3 days shipped by Courier (DHL, TNT, FEDEX, UPS, EMS and so on)
2. Small quantity orders usually within 3-7 days shipped by air or by sea.
3. Large quantity orders usually within 7-15 days shipped by sea.
4. The main export port: XINGANG, BEIJING , SHANGHAI, QIANGDAO , NINGBO and so on.
