500UM Micron Rating Polyester Filter Mesh With Monofilament Polyamide Yarn Material

500um Micron Rating Polyamide Woven Filter Mesh made of Monofilament Polyamide Yarn Monofilament Polyester Filter Mesh Mesh Count: JPP14T or 36tpi (threads per inch) Thread Diameter: 200um Micron Rating: 500um Width: 110cm-190cm Polyester Filter Mesh
Nylon Filter Mesh

500um Micron Rating Polyamide Woven Filter Mesh made of Monofilament Polyamide Yarn

Polyester Filter Mesh

Monofilament Polyester Filter Mesh

Mesh Count: JPP14T or 36tpi (threads per inch)

Thread Diameter: 200um

Micron Rating: 500um

Width: 110cm-190cm

Polyester Filter Mesh Introduction:

Selecting quality monofilament Polyamide Yarn with abrasion-resistance, good chemical stability, SHARE carefully weaves polyamide filter mesh with Sulzer P7100 looms; More than 30 years of production experience enables us to weave Polyamide filter mesh with precise mesh holes and thanks to the after-production treatment of heat-setting, polyamide filter mesh has stable yarn conection without yarn migration during use, precision mesh holes, good dimensional stability.

Advantages of Polyester Filter Mesh

High Tenacity, High Tension, Low-elongation, Anti-wrinkling, anti-mildew, good chemical characteristics

Polyester Filter Mesh Application:

Liquid Filtration, Oil Filtration, Water Filtration, Petroleum Filtration

Polyester Filter Mesh Datasheet:


Fabric Number Mesh count Thread Diameter Mesh Opening Open Area Fabric Thickness Weight
No. cm mesh/inch micron micron % micron g/m2
JPP5 5 12 500 1500 56 850 271
JPP6 6 16 400 1267 58 780 208
JPP7 7 18 350 1079 57 675 186
JPP8 8 20 350 900 52 685 212
JPP9 9 24 250 860 60 455 145
JPP10 10 25 300 700 49 576 195
JPP12 12 30 250 583 49 470 162
JPP12 12 35 300 533 41 585 234
JPP14 14 40 300 414 34 595 273
JPP16 16 40 200 425 46 370 139
JPP16 16 50 250 375 36 485 217
JPP20 20 50 150 350 49 375 98
JPP20 20 50 200 300 36 385 173
JPP24 24 60 150 267 41 285 117
JPP28 28 70 120 237 44 215 87
JPP30 30 76 120 213 41 225 94
JPP32 32 80 100 213 46 165 69
JPP36 36 90 100 178 41 178 78
JPP40 40 100 100 150 36 190 87
JPP43 43 110 80 152 43 135 60
JPP48 48 120 80 130 38 145 62
JPP56 56 140 60 120 44 85 44
JPP59 59 150 60 110 42 98 46
JPP64 64 160 60 100 37 105 50
JPP72 72 180 50 90 41 82 39
JPP80 80 200 50 75 36 90 43
JPP100 100 250 40 60 36 65 35
JPP120 120 305 40 43 25 70 29
JPP130 130 330 40 37 23 75 31
JPP140 140 355 30 38 33.7 60 33
JPP150 150 381 30 34 30.25 52 26
JPP165 165 420 30 28 20.7 51 29
JPP180 180 460 30 25 19.5 58 31
JPP200 200 510 30 16 10.2 58 35

SGS Certificate

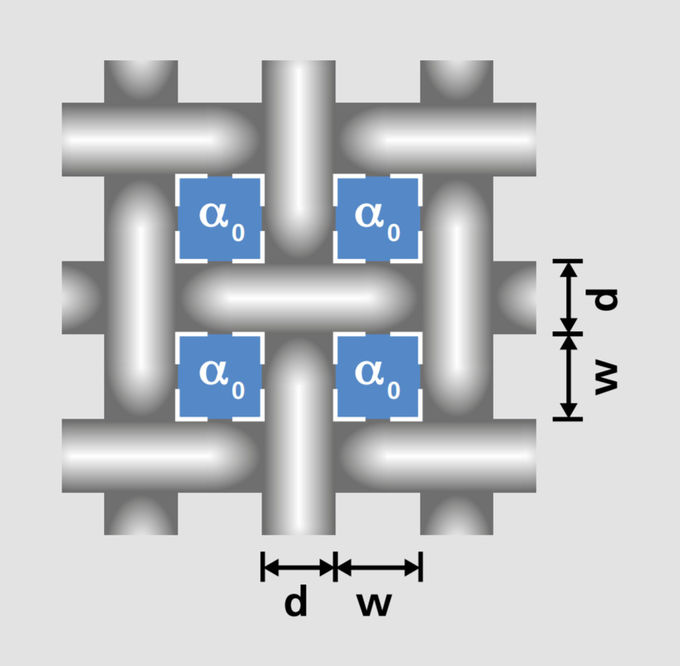

Fabric number

The fabric number is composed of:

Mesh-count n 110-80W PW Thread ∅ dnom 110-80W PW Fabric colour 110-80W PW

(White = W; yellow = Y) Type of weave 110-80W PW (Plain Weave = PW)
