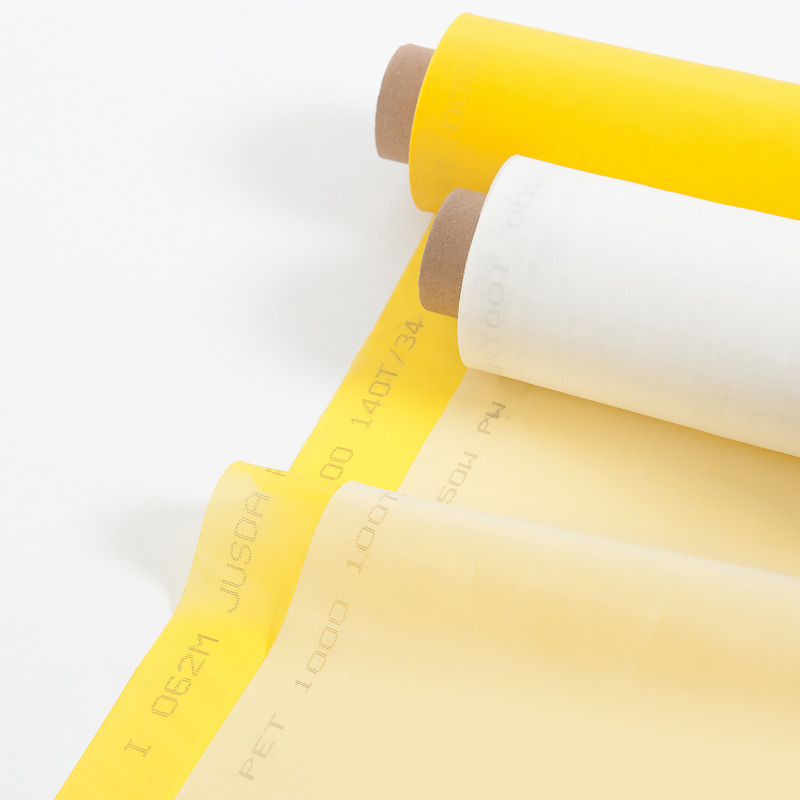

100% Polyester 25 Micron Silk Screen Mesh Roll

Polyester Screen Mesh Roll Printing on Glass Plate DPP120 /300-314 Features advantages of 25 Micron polyester screen mesh roll printing on glass plate 1. Faster turnaround time from the screen room to the pressroom 2. Good diathermancy 3. High air per

 Polyester Screen Mesh Roll Printing on Glass Plate DPP120 /300-314

Features & advantages of  25 Micron polyester screen mesh roll printing on glass plate

1. Faster turnaround time from the screen room to the pressroom

2. Good diathermancy

3. High air permeability

4. Acid resistance and Alkali resistance

5. Long working life

6. Hard wear

7. Three factories for manufacturing

8. Imported weaving machines from Switzerland and Italy

Applications of  25 Micron polyester screen mesh roll printing on glass plate:

DPP Silk Screen Printing Material-Polyester Printing Mesh is woven from yarn that is extruded from heated polyester into a single strand. polyester screen printing mesh roll Widely used in textile printing, plate making printing, electronic printing, ceramics, glass, stained paper printing, label plate, and advertising.

25 Micron polyester screen mesh roll Common Specifications:

silk screen printing

43T-80,39T-55, 47T-55, 53T-55, 59T-55 90T-48,70T-55,64T-64,90T48,110T-40,120T-34,140T-34,165T-31 and so on.

Polyester Screen Printing Mesh
Model Specification (/cm) Mesh count (mesh/inch) Thread Diameter (um) Mesh opening(um) Open Area(%) Thickness(um) Theoretic Ink Volume (cm3/m2)
PET36/169 36 90 100 169 39 170 66
PET39/168 39 99 80 168 45 136 62
PET39/149 39 99 100 149 35 170 60
PET43/145 43 110 80 145 41 136 56
PET47/135 47 120 71 135 42 121 51
PET51/119 51 130 71 119 39 121 47
PET53/112 53 135 71 112 37 121 45
PET100/51 100 250 40 51 30 85 26
PET110/48 110 280 34 48 33 58 19
PET110/43 110 280 40 43 26 68 18
PET120/44 120 305 31 44 33 53 18
PET120/42 120 300 34 42 29 58 17
PET120/37 120 300 40 37 18 68 13
PET130/31 130 330 40 31 17 68 12
PET130/36 130 330 34 36 26 58 15
PET140/34 140 350 31 34 25 53 13
PET140/32 140 350 34 32 19 58 11
PET150/34 150 380 27 34 30 46 14
PET150/31 150 380 30 31 23 51 12
PET150/28 150 380 34 28 16 58 9
PET165/29 165 420 27 29 22 46 10
PET165/25 165 420 31 25 16 53 8
Remark:The above are theoretic data for reference only.Thickness error range±5% ;Mesh Opening & Open Area & Theoretic Ink Volume only slight error according to actual data.
