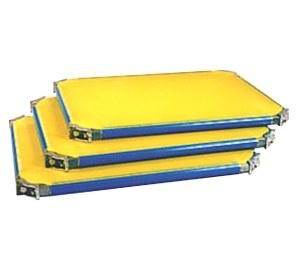

Aluminum Newman Roller Frames for Screen Printing

With over 30 years of proven technology, the Aluminum Newman Roller Frame surpasses any other frame system on the market today. The Newman Roller Frame goes further than meeting rigidity and stability requirements, actually strengthening the characteristics of the mesh with each retensioning between print runs, and after reclaiming. Greater than expected improvements occur from the exclusive use of high-tension screens in both print quality and printing efficiency. Newman Roller Frames help printers maintain quality, productivity, and control.

Aluminum Newman Roller Frames for Screen Printing

MANUAL - MZX™ ULTRA-LIGHT TEXTILE FRAMES - STANDARD SIZES

MODEL SIZE DESCRIPTION
MZX-UL™ 18" x 20" ID (45.72 x 50.80cm) 3 rollers with 18" square bar
MZX-UL™ 23" x 26" OD (58.42 x 66.04cm) 3 rollers with 23" square bar
MZX-UL™ 23" x 28" OD (58.42 x 71.12cm) 3 rollers with 23" square bar
MZX-UL™ 23" x 31" OD (58.42 x 78.74cm) 4 rollers (no square bar)

 Aluminum Newman Roller Frame Packages Available.
Custom Aluminum Newman Roller Frame Sizes Available.
Roller Diameter: 1 7/16”; Minimum Roller Size: 12” (302mm); Maximum Roller Size: 31” (787mm)


AUTOMATIC - M3™ ULTRA-LIGHT TEXTILE FRAMES - STANDARD SIZES
CATEGORY-1

MODEL SIZE DESCRIPTION
M3-UL™ 23" x 31" OD (58.42 x 78.74cm) All Rollers



CATEGORY-2

MODEL SIZE DESCRIPTION
M3-UL™ 23" x 33" OD (58.42 x 83.82cm) All Rollers



CATEGORY-3

MODEL SIZE DESCRIPTION
M3-UL™ 25" x 33" OD (63.50 x 83.82cm) All Rollers
M3-UL™ 25" x 36" OD (63.50 x 91.44cm) All Rollers
M3-UL™ 26" x 36" OD (66.04 x 91.44cm) All Rollers


Aluminum Newman Roller Frame Packages Available.
Custom Frame Sizes Available.
Roller Diameter: 1 5/8”; Minimum Roller Size: 16” (406.5mm); Maximum Roller Size: 43” (1092mm)



CATEGORY-4

MODEL SIZE DESCRIPTION
M3-UL™ 31" x 42" OD (78.74 x 106.68cm) All Rollers
M3-UL™ 33" x 42" OD (83.82 x 106.68cm) All Rollers
M3-UL™ 33" x 43" OD (83.82 x 109.22cm) All Rollers

Frame Packages Available.
Custom Frame Sizes Available.
Roller Diameter: 1 5/8”; Minimum Roller Size: 16” (406.5mm); Maximum Roller Size: 43” (1092mm)





AUTOMATIC - M6™ ULTRA-LIGHT TEXTILE FRAMES - STANDARD SIZES
CATEGORY-5

MODEL SIZE DESCRIPTION
M6-UL™ 47" x 51" OD (119.4 x 129.5cm) All Rollers
M6-UL™ 47" x 52" OD (119.4 x 132.1cm) All Rollers


Aluminum Newman Roller Frame Packages Available.
Custom Frame Sizes Available.

Roller Diameter: 2 inches; Minimum Roller Size: 15” (381mm); Maximum Roller Size: 62” (1575mm)

Aluminum Newman Roller Frame
