MK-F442B floor type four color four station double wheel screen printing machine

Description

It is mainly used for the four color T-shirt overprinting,it is configured with four screen frame chucks and four t-shirt pallet stations.Both the pallet part and screen frame part can rotate Independently at 360 degree;Users can operate at any station.

If one dryer is placed on a station to flash dry the surface, two users are familiar with the machine, they can print 30-50 pieces t-shirts each hour.This machine is manual mobile screen frame to match color,All the screen frames'position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting. There is no need to correct the position of the color one by one.

Product Information
Product Code 006433
Product Name MK-F442B floor type four color four station double wheel screen printing machine
HS Code 8443192290
Product Color Blue
Printing Area 22in(55cm)*18in(45cm)
Machine Using Material Steel plate
Machine Surface Treatment Electrostatic spraying
Attachment Material Stainless steel or zinc plating, nickel plating
Net Weight 174.2lb
Gross Weight 191.8lb
Packing Size 26*26*12in
24*15.7*11in
24.4*20.5*9.4in
24.4*6.7*20in
Packing Volume 0.33m³
Packing Material Export carton
Product Features

1.Both the chuck of the screen frame and the pallet can rotate at 360 degree;Users can Operate at any position or any pallet position.

2.Users can finish all the screen frame's overprinting positioning at any pallet station,All the screen frames'position is correct to any one pallet , the other one pallet will be correct , then the user can start overprinting.There is no need to correct the position of every pallet.

3.Each screen frame's fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision.

4.Each screen frame's fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.

MK-F442B floor type four color four station double wheel screen printing machine

5. Each screen frame's fixing device is equipped wth adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame.

6. According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance.

7. Screen frame chuck's width is (11in) 29 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in).

8. Screen frame chuck can be adjusted up to 5 cm (2 in)according to the height of substrates.

MK-F442B floor type four color four station double wheel screen printing machine

 9. Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate, and it can be fit closely and be more stable.

10. The pallet is directly fixed on the pallet arm by screws.

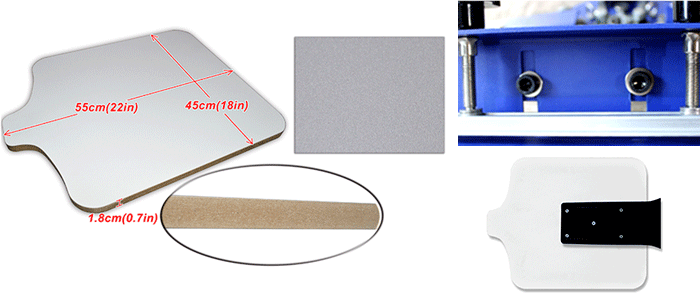

11. T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.

MK-F442B floor type four color four station double wheel screen printing machine

12. There are four supported skew beams at the bottom of the machine ,and it can make the machine more stable .The machine is configured with eight rack supporting feet, it can adjust the height of the machine within 20 cm (8 in).

MK-F442B floor type four color four station double wheel screen printing machine

13. The machine adopts advanced electrostatic spraying process, various parts using stainless steel, aluminum alloy, nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.

MK-F442B floor type four color four station double wheel screen printing machine

Product Parts

All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list,parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change.

MK-F442B floor type four color four station double wheel screen printing machine
