MK-T411B desktop four color one station single wheel screen printing machine

Description

It is mainly used for the four color T-shirt overprinting, the machine should be fixed on the table. This machine is manual mobile screen frame to match color.

Product Information
Product Code 006430
Product Name MK-T411B desktop four color one station single wheel screen printing machine
HS code 8443192290
Product Color blue
Printing Area 22in(55cm)*18in(45cm)
Machine using material steel plate
Machine surface treatment Electrostatic spraying
Attachment material Stainless steel or zinc plating, nickel plating
Net weight 57.3lb
Gross weight 68.3lb
Packing size 33.8*20.5*10in
Packing volume 0.12m³
Packing material Export carton



Product Features

1.The chuck of the screen frame can rotate at 360 degree.

2.Each screen frame's fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision.

3.Each screen frame's fixing device is equipped wth big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel.

MK-T411B desktop four color one station single wheel screen printing machine

4.Each screen frame's fixing device is equipped with adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame.

5.According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance.

6.Screen frame chuck's width is (10in) 25 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in).

7.Screen frame chuck can be adjusted up to 5 cm (2 in)according to the height of substrates.

MK-T411B desktop four color one station single wheel screen printing machine

8.Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate,

and it can be fit closely and be more stable.

9.The pallet is directly fixed on the pallet arm by screws.

10.T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.

MK-T411B desktop four color one station single wheel screen printing machine

11. The machine adopts advanced electrostatic spraying process, various parts using stainless steel,aluminum alloy,nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.

MK-T411A Four Color One Station Desktop Screen Printing Machine

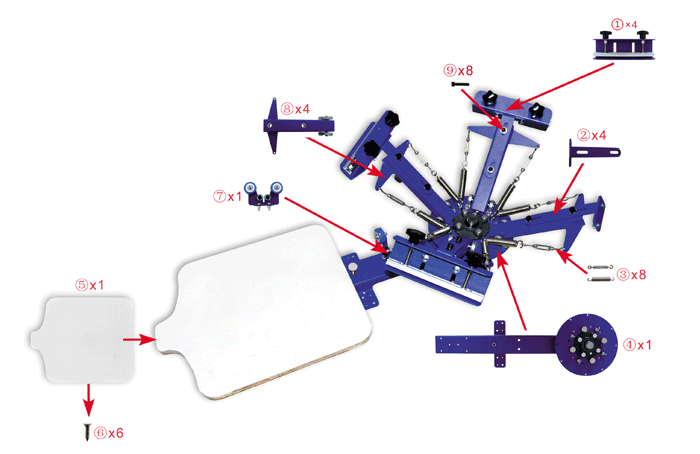

Product Parts

All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list,parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change.

MK-T411A Four Color One Station Desktop Screen Printing Machine
